*The default slide format is "unbaked slides". If you need baked the slides, please specify prior to ordering and we will prepare baked slides. The baking process is for 2 hours at 60C. If you prefer a different baking protocol, please let us know.

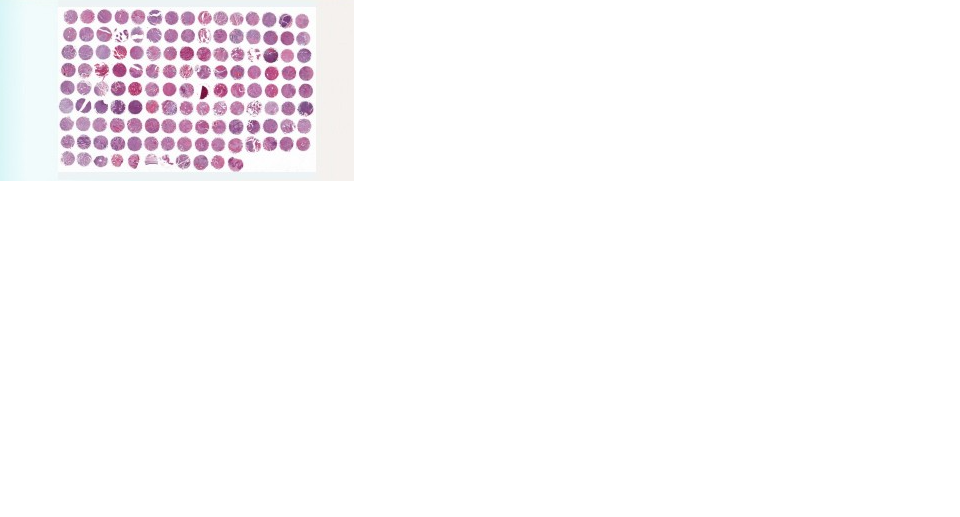

| Microarray Panel | Head & Neck tumor with normal tissue microarray, containing 104 cases of squamous cell carcinoma, 7 adenoid cystic carcinoma, 7 mucoepidermoid carcinoma, 1 cases of each sarcomatoid carcinoma, undifferentiated carcinoma, acinar cell carcinoma, epithelial myoepithelial carcinoma and papillary adenocarcinoma, and 8 normal head & neck tissues, most in single core per case | |
| Cores | 131 | |
| Cases | 128 | |
| Row number | 9 | |
| Column number | 15 | |
| Core Diameter (mm) | 1.5 | |
| Thickness (µm) | 5 | |
| Quality Control | H&E and IHC confirmed | |
| Tissue Array Type | FFPE | |
| Species | Human | |
| Applications | Routine histology procedures including Immunohistochemistry (IHC) and In Situ Hybridization (ISH), protocols which can be found at our support page. | |
| Notes | 1. TMA slides were sectioned and stored at 4°C and may not be fresh cut, but still suitable for IHC. Please request fresh cut if experiment involves phospho-specific antibodies, RNA studies, FISH or ISH, etc. A minimum of 3 slides per TMA must be purchased to cover the cost of trimming for fresh sectioning. 2. Most TMA slides were not coated with an extra layer of paraffin (tissue cores can be easily seen on the glass). To prevent tissue detachment during antigen retrieval, unbaked slides must be baked for at least 30 to 120 minutes at 60°C. before putting into xylene for de-paraffinization. Baked slides were sent out baked for 2 hours. In the following specsheet,“*” means invalid core; “-” means no applicable or negative in IHC markers. |
Specification Sheet:
| Pos. | No. | Age | Sex | Organ/Anatomic Site | Pathology diagnosis | TNM | Grade | Stage | Type |
|---|
| A1 | 1 | 63 | M | Skin/Occipital | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| A2 | 2 | 66 | M | Skin/Forehead | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| A3 | 3 | 72 | F | Skin/Forehead | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| A4 | 4 | 46 | M | Skin/Temporal | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| A5 | 5 | 58 | M | Skin/Temporal | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| A6 | 6 | 41 | F | Skin/Head | Basal squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| A7 | 7 | 51 | M | Skin/Head | Squamous cell carcinoma | T2N0M0 | 3 | II | Malignant | |
| A8 | 8 | 51 | M | Skin/Head | Basal squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| A9 | 9 | 73 | M | Skin/Face | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| A10 | 10 | 58 | M | Skin/Left cheek | Squamous cell carcinoma | T2N1M0 | 1 | III | Malignant | |
| A11 | 11 | 43 | F | Skin/Cheek | Squamous cell carcinoma | T2N0M0 | 3 | II | Malignant | |
| A12 | 12 | 78 | M | Skin/Left cheek | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| A13 | 13 | 79 | M | Skin/Left neck | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| A14 | 14 | 70 | M | Skin/Left neck | Squamous cell carcinoma | T2N1M0 | 3 | III | Malignant | |
| A15 | 15 | 86 | F | Skin/Right neck | Squamous cell carcinoma | T2N1M0 | 3 | III | Malignant | |
| B1 | 16 | 59 | M | Skin/Front of left ear | Squamous cell carcinoma | T4N0M0 | 1 | IV | Malignant | |
| B2 | 17 | 73 | M | Nasopharynx | Squamous cell carcinoma | T1N0M0 | 1 | I | Malignant | |
| B3 | 18 | 49 | M | Nasal cavity | Sarcomatoid carcinoma | T2N0M0 | - | II | Malignant | |
| B4 | 19 | 30 | M | Nasal cavity | Inverted papilloma with canceration | T1N0M0 | - | I | Malignant | |
| B5 | 20 | 61 | M | Nasopharynx | Squamous cell carcinoma | T2N0M0 | 3 | II | Malignant | |
| B6 | 21 | 58 | M | Left maxillary sinus | Squamous cell carcinoma | T1N0M0 | 1 | I | Malignant | |
| B7 | 22 | 53 | M | Left maxillary sinus | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| B8 | 23 | 58 | M | Maxillary sinus | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| B9 | 24 | 50 | M | Left maxillary sinus | Squamous cell carcinoma | T1N0M0 | 2 | I | Malignant | |
| B10 | 25 | 52 | M | Left maxillary sinus | Squamous cell carcinoma | T2N0M0 | 3 | II | Malignant | |
| B11 | 26 | 51 | F | Maxillary sinus | Squamous cell carcinoma | T1N0M0 | 3 | I | Malignant | |
| B12 | 27 | 75 | M | Left maxillary sinus | Undifferentiated carcinoma | T3N0M0 | 4 | III | Malignant | |
| B13 | 28 | 61 | F | Maxillary sinus | Adenoid cystic carcinoma | T2N0M0 | - | II | Malignant | |
| B14 | 29 | 53 | M | Right septal sinus | Squamous cell carcinoma | T2N0M0 | 3 | II | Malignant | |
| B15 | 30 | 71 | M | Nasopharynx | Squamous cell carcinoma | T2N0M0 | 3 | II | Malignant | |
| C1 | 31 | 50 | M | Nasopharynx | Squamous cell carcinoma | T2N0M0 | 3 | II | Malignant | |
| C2 | 32 | 63 | F | Nasopharynx | Squamous cell carcinoma | T3N0M0 | 3 | III | Malignant | |
| C3 | 33 | 43 | M | Nasopharynx | Squamous cell carcinoma | T3N0M0 | 3 | III | Malignant | |
| C4 | 34 | 61 | M | Oral Cavity | Squamous cell carcinoma | T3N2N0 | 1 | IVA | Malignant | |
| C5 | 35 | 54 | F | Oral Cavity | Squamous cell carcinoma | T3N0M0 | 1 | III | Malignant | |
| C6 | 36 | 62 | M | Oral Cavity | Squamous cell carcinoma | T3N0M0 | 1 | III | Malignant | |
| C7 | 37 | 69 | M | Oral Cavity | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| C8 | 38 | 45 | M | Oral Cavity | Squamous cell carcinoma | T4aN1M0 | 1 | IVA | Malignant | |
| C9 | 39 | 45 | M | Oral Cavity | Squamous cell carcinoma | T4aN1M0 | 2 | IVA | Malignant | |
| C10 | 40 | 52 | M | Oral Cavity | Squamous cell carcinoma | T3N0M0 | 2 | III | Malignant | |
| C11 | 41 | 72 | F | Oral Cavity/Soft palate | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| C12 | 42 | 44 | M | Oral Cavity/Palate | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| C13 | 43 | 46 | F | Oral Cavity/Soft palate | Acinar cell carcinoma | T2N0M0 | - | II | Malignant | |
| C14 | 44 | 53 | M | Oral Cavity/Palate | Mucoepidermoid carcinoma | T2N0M0 | - | II | Malignant | |
| C15 | 45 | 54 | M | Oral Cavity/Palate | Adenoid cystic carcinoma | T4bN0M0 | - | IVB | Malignant | |
| D1 | 46 | 40 | M | Oral Cavity/Tongue | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| D2 | 47 | 46 | F | Oral Cavity/Root of tongue | Squamous cell carcinoma | T4aN0M0 | 1 | IVA | Malignant | |
| D3 | 48 | 52 | M | Oral Cavity/Tongue | Squamous cell carcinoma | T2N1M0 | 1 | III | Malignant | |
| D4 | 49 | 32 | F | Oral Cavity/Tongue | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| D5 | 50 | 60 | M | Oral Cavity/Tongue | Squamous cell carcinoma | T3N1M0 | 1 | III | Malignant | |
| D6 | 51 | 55 | M | Oral Cavity/Tongue | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| D7 | 52 | 60 | F | Oral Cavity/Tongue | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| D8 | 53 | 45 | M | Oral Cavity/Tongue | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| D9 | 54 | 42 | M | Oral Cavity/Tongue | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| D10 | 55 | 70 | M | Oral Cavity/Tongue | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| D11 | 56 | 67 | M | Oral Cavity/Tongue | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| D12 | 57 | 45 | M | Oral Cavity/Tongue | Squamous cell carcinoma | T3N1M0 | 1 | III | Malignant | |
| D13 | 58 | 53 | M | Oral Cavity/Tongue | Squamous cell carcinoma | T2N1M0 | 1 | III | Malignant | |
| D14 | 59 | 42 | F | Oral Cavity/Tongue | Squamous cell carcinoma | T2N1M0 | 1 | III | Malignant | |
| D15 | 60 | 64 | M | Oral Cavity/Tongue | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| E1 | 61 | 46 | M | Oral Cavity/Tongue | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| E2 | 62 | 45 | F | Oral Cavity/Tongue | Squamous cell carcinoma | T3N1M0 | 2 | III | Malignant | |
| E3 | 63 | 78 | M | Oral Cavity/Tongue | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| E4 | 64 | 48 | M | Oral Cavity/Tongue | Squamous cell carcinoma | T3N0M0 | 3 | III | Malignant | |
| E5 | 65 | 57 | M | Oral Cavity/Gingiva | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| E6 | 66 | 50 | M | Oral Cavity/Gingiva | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| E7 | 67 | 62 | M | Oral Cavity/Gingiva | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| E8 | 68 | 65 | F | Oral Cavity/Gingiva | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| E9 | 69 | 69 | F | Oral Cavity/Gingiva | Squamous cell carcinoma | T3N1M0 | 2 | III | Malignant | |
| E10 | 70 | 65 | F | Oral Cavity/Gingiva | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| E11 | 71 | 58 | M | Oral Cavity/Gingiva | Squamous cell carcinoma | T3N0M0 | 2 | III | Malignant | |
| E12 | 72 | 48 | M | Oral Cavity/Gingiva | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| E13 | 73 | 53 | M | Oral Cavity/Gingiva | Squamous cell carcinoma | T3N1M0 | 2 | III | Malignant | |
| E14 | 74 | 61 | M | Oral Cavity/Gingiva | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| E15 | 75 | 49 | M | Oral Cavity/Gingiva | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| F1 | 76 | 48 | F | Sublingual gland | Adenoid cystic carcinoma | T3N1M0 | - | III | Malignant | |
| F2 | 77 | 61 | M | Left submaxillary gland | Adenoid cystic carcinoma | T2N0M0 | - | II | Malignant | |
| F3 | 78 | 43 | F | Left parotid gland | Adenoid cystic carcinoma | T2N0M0 | - | II | Malignant | |
| F4 | 79 | 62 | F | Right parotid gland | Adenoid cystic carcinoma | T2N0M0 | - | II | Malignant | |
| F5 | 80 | 57 | F | Parotid gland | Adenoid cystic carcinoma | T2N0M0 | - | II | Malignant | |
| F6 | 81 | 14 | F | Right parotid gland | Mucoepidermoid carcinoma | T2N0M0 | - | II | Malignant | |
| F7 | 82 | 76 | F | Left submaxillary gland | Mucoepidermoid carcinoma | T3N0M0 | - | III | Malignant | |
| F8 | 83 | 44 | M | Right parotid gland | Mucoepidermoid carcinoma | T2N0M0 | - | II | Malignant | |
| F9 | 84 | 39 | F | Right parotid gland | Mucoepidermoid carcinoma | T2N0M0 | - | II | Malignant | |
| F10 | 85 | 47 | F | Parotid gland | Mucoepidermoid carcinoma | T2N0M0 | - | II | Malignant | |
| F11 | 86 | 30 | F | Right parotid gland | Mucoepidermoid carcinoma | T2N0M0 | - | II | Malignant | |
| F12 | 87 | 62 | M | Left parotid gland | Papillary adenocarcinoma | T4aN0M0 | - | IVA | Malignant | |
| F13 | 88 | 55 | M | Left parotid gland | Epithelial myoepithelial carcinoma | T2N0M0 | - | II | Malignant | |
| F14 | 89 | 76 | M | Left parotid gland | Squamous cell carcinoma | T3N0M0 | 3 | III | Malignant | |
| F15 | 90 | 68 | M | Tonsil | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| G1 | 91 | 56 | M | Tonsil | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| G2 | 92 | 50 | F | Tonsil | Squamous cell carcinoma | T2N0M0 | 3 | II | Malignant | |
| G3 | 93 | 59 | M | Oropharynx | Squamous cell carcinoma | T1N1M0 | 1 | III | Malignant | |
| G4 | 94 | 59 | M | Oropharynx | Squamous cell carcinoma | T2N0M0 | 1 | II | Malignant | |
| G5 | 95 | 64 | M | Oropharynx | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| G6 | 96 | 73 | M | Oropharynx | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| G7 | 97 | 51 | M | Oropharynx | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| G8 | 98 | 59 | M | Oropharynx | Squamous cell carcinoma | T4aN0M0 | 2 | IVA | Malignant | |
| G9 | 99 | 66 | M | Oropharynx | Squamous cell carcinoma | T2N1M0 | 2 | III | Malignant | |
| G10 | 100 | 67 | M | Oropharynx | Squamous cell carcinoma | T2N1M0 | 3 | III | Malignant | |
| G11 | 101 | 67 | M | Oropharynx | Squamous cell carcinoma | T2N0M0 | 3 | II | Malignant | |
| G12 | 102 | 72 | M | Epiglottis | Squamous cell carcinoma | T3N1M0 | 2 | III | Malignant | |
| G13 | 103 | 58 | M | Epiglottis | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| G14 | 104 | 51 | M | Oropharynx | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| G15 | 105 | 51 | M | Oropharynx | Squamous cell carcinoma | T3N0M0 | 2 | III | Malignant | |
| H1 | 106 | 54 | M | Oropharynx | Squamous cell carcinoma | T3N0M0 | 2 | III | Malignant | |
| H2 | 107 | 75 | M | Oropharynx | Basal squamous cell carcinoma | T2N0M0 | 3 | II | Malignant | |
| H3 | 108 | 65 | M | Laryngopharynx | Squamous cell carcinoma | T2N1M0 | 2 | III | Malignant | |
| H4 | 109 | 55 | M | Laryngopharynx | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| H5 | 110 | 75 | M | Laryngopharynx | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| H6 | 111 | 60 | M | Laryngopharynx | Squamous cell carcinoma | T4aN0M0 | 2 | IVA | Malignant | |
| H7 | 112 | 64 | M | Laryngopharynx | Squamous cell carcinoma | T2N1M0 | 2 | III | Malignant | |
| H8 | 113 | 60 | M | Laryngopharynx | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| H9 | 114 | 53 | M | Laryngopharynx | Squamous cell carcinoma | T2N1M0 | 2 | III | Malignant | |
| H10 | 115 | 59 | M | Laryngopharynx | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| H11 | 116 | 45 | M | Larynx/Supraglottic type | Squamous cell carcinoma | T4aN0M0 | 1 | IVA | Malignant | |
| H12 | 117 | 55 | M | Larynx/Supraglottic type | Squamous cell carcinoma | T3N0M0 | 2 | III | Malignant | |
| H13 | 118 | 53 | M | Larynx/Glottic type | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| H14 | 119 | 49 | M | Larynx/Lower sanctum type | Squamous cell carcinoma | T3N0M0 | 2 | III | Malignant | |
| H15 | 120 | 59 | M | Larynx/Glottic type | Squamous cell carcinoma | T4aN0M0 | 2 | IVA | Malignant | |
| I1 | 121 | 60 | M | Larynx/Lower sanctum type | Squamous cell carcinoma | T4aN0M0 | 2 | IVA | Malignant | |
| I2 | 122 | 64 | M | Larynx/Glottic type | Squamous cell carcinoma | T2N0M0 | 2 | II | Malignant | |
| I3 | 123 | 61 | M | Larynx/Glottic type | Squamous cell carcinoma | T3N1M0 | 2 | III | Malignant | |
| I4 | 124 | 27 | F | Skin/Head | Skin tissue | - | - | - | Normal | |
| I5 | 125 | 47 | M | Skin/Face | Skin tissue | - | - | - | Normal | |
| I6 | 126 | 45 | M | Epiglottis | Epiglottis tissue | - | - | - | Normal | |
| I7 | 127 | 73 | M | Oropharynx | Oropharynx tissue | - | - | - | Normal | |
| I8 | 128 | 45 | M | Salivary gland | Salivary gland tissue | - | - | - | Normal | |
| I9 | 129 | 23 | M | Salivary gland | Salivary gland tissue | - | - | - | Normal | |
| I10 | 130 | 73 | M | Sublingual gland | Sublingual gland tissue | - | - | - | Normal | |
| I11 | 131 | 23 | M | Oral Cavity/Tongue | Tongue tissue | - | - | - | Normal |
