pProEX HTA Plasmid
PVT0373-1 2ug
pProEX HTA Plasmid Infomation
Plasmid type: expression of Escherichia coli
Expression level: high
Cloning methods: polyclonal sites, restrictive endonucleases
Carrier size: 4751bp
Sequence primer sequence of 5'sequencing: M13/pUC Reverse: AGCGGATAACAATTTCACACAGG (Invitrogen)
Sequence primer sequence of 3'sequencing: pTrcHis Reverse: GATTTAATCTGTATCAGG (Invitrogen)
Carrier label: N-His, N-TEV protease cutting site
Carrier resistance: ampicin
Remarks:
Hosts: E.coli. Related vectors: pBR322.
Product directory number: 50609
Stability: instantaneous expression of Transient
Composition / inducible type: inducible type
Virus / non virus: non virus
pProEX HTA Plasmid Description
pProEX HT series prokaryotic expression system is a carrier used to express foreign proteins in Escherichia coli. The target protein expressed by this carrier contains 6 His purify labels. The target gene can be cloned into the polyclonal site of the vector. After the expression of pProEX HTa, B and C. protein is selected, the His purification tag is located at the N end of the target protein. Meanwhile, the use of His purification tag can be used for protein purification. The rTEV protease identification site is also contained on the carrier, and the rTEV protease can be used for enzyme digestion to remove the fused His label.
pProEX HTA Plasmid Sequence
LOCUS pPROEX HTa 4751 bp DNA circular SYN
DEFINITION pPROEX HTa
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.

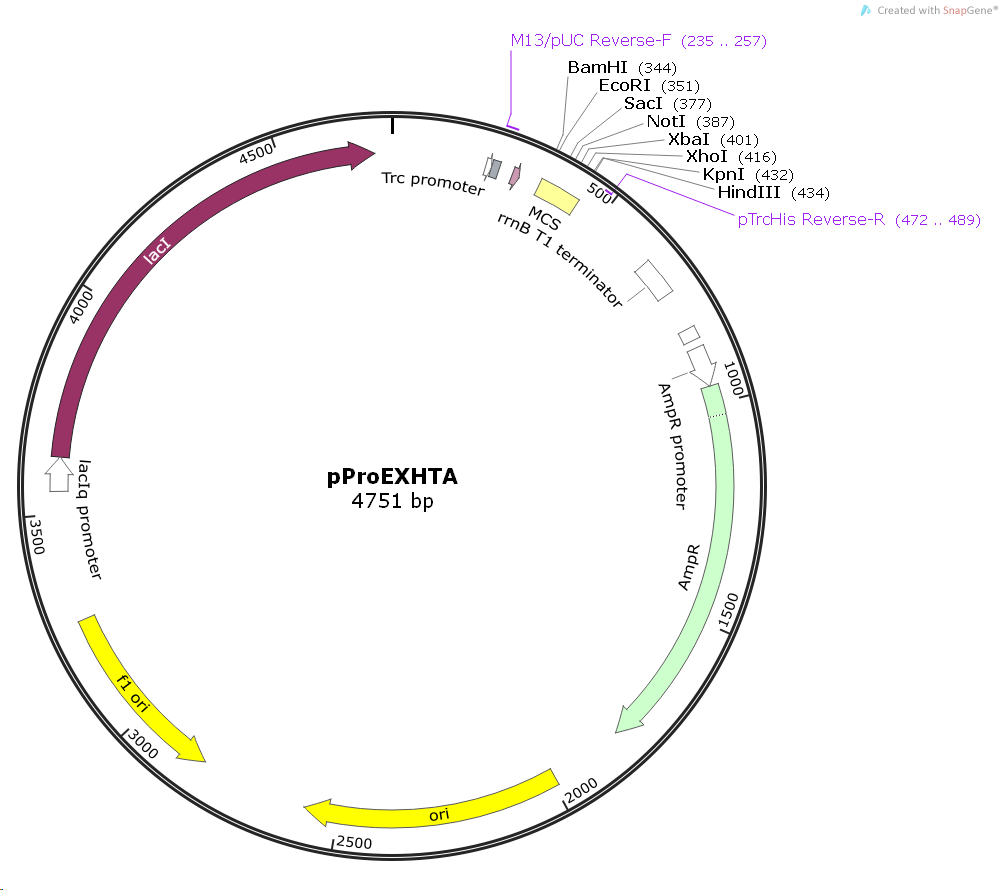

FEATURES Location/Qualifiers
source 1..4751
/organism="pPROEX HTa"
/mol_type="other DNA"
promoter 193..266
/label="trc_promoter"
misc_feature 235..257
/label="M13_pUC_rev_primer"
misc_feature complement(472..489)
/label="pTrcHis_rev_primer"
misc_feature complement(472..489)
/label="pBAD_rev_primer"
terminator 522..679
/label="rrnB_terminator"
terminator 645..688
/label="rrnB_T1_terminator"
terminator 820..847
/label="rrnB_T2_terminator"
promoter 889..917
/label="AmpR_promoter"
gene 959..1819
/label="Ampicillin"
/gene="Ampicillin"
CDS 959..1819
/label="ORF frame 2"
rep_origin 1974..2593
/label="pBR322_origin"
rep_origin complement(2931..3237)
/label="f1_origin"
misc_feature 3452..3474
/label="pGEX_3_primer"
misc_feature 3621..4712
/label="lacI"
CDS 3753..4712
/label="ORF frame 3"
ORIGIN
1 GTTTGACAGC TTATCATCGA CTGCACGGTG CACCAATGCT TCTGGCGTCA GGCAGCCATC
61 GGAAGCTGTG GTATGGCTGT GCAGGTCGTA AATCACTGCA TAATTCGTGT CGCTCAAGGC
121 GCACTCCCGT TCTGGATAAT GTTTTTTGCG CCGACATCAT AACGGTTCTG GCAAATATTC
181 TGAAATGAGC TGTTGACAAT TAATCATCCG GTCCGTATAA TCTGTGGAAT TGTGAGCGGA
241 TAACAATTTC ACACAGGAAA CAGACCATGT CGTACTACCA TCACCATCAC CATCACGATT
301 ACGATATCCC AACGACCGAA AACCTGTATT TTCAGGGCGC CATGGATCCG GAATTCAAAG
361 GCCTACGTCG ACGAGCTCAA CTAGTGCGGC CGCTTTCGAA TCTAGAGCCT GCAGTCTCGA
421 GGCATGCGGT ACCAAGCTTG GCTGTTTTGG CGGATGAGAG AAGATTTTCA GCCTGATACA
481 GATTAAATCA GAACGCAGAA GCGGTCTGAT AAAACAGAAT TTGCCTGGCG GCAGTAGCGC
541 GGTGGTCCCA CCTGACCCCA TGCCGAACTC AGAAGTGAAA CGCCGTAGCG CCGATGGTAG
601 TGTGGGGTCT CCCCATGCGA GAGTAGGGAA CTGCCAGGCA TCAAATAAAA CGAAAGGCTC
661 AGTCGAAAGA CTGGGCCTTT CGTTTTATCT GTTGTTTGTC GGTGAACGCT CTCCTGAGTA
721 GGACAAATCC GCCGGGAGCG GATTTGAACG TTGCGAAGCA ACGGCCCGGA GGGTGGCGGG
781 CAGGACGCCC GCCATAAACT GCCAGGCATC AAATTAAGCA GAAGGCCATC CTGACGGATG
841 GCCTTTTTGC GTTTCTACAA ACTCTTTTTG TTTATTTTTC TAAATACATT CAAATATGTA
901 TCCGCTCATG AGACAATAAC CCTGATAAAT GCTTCAATAA TATTGAAAAA GGAAGAGTAT
961 GAGTATTCAA CATTTCCGTG TCGCCCTTAT TCCCTTTTTT GCGGCATTTT GCCTTCCTGT
1021 TTTTGCTCAC CCAGAAACGC TGGTGAAAGT AAAAGATGCT GAAGATCAGT TGGGTGCACG
1081 AGTGGGTTAC ATCGAACTGG ATCTCAACAG CGGTAAGATC CTTGAGAGTT TTCGCCCCGA
1141 AGAACGTTTT CCAATGATGA GCACTTTTAA AGTTCTGCTA TGTGGCGCGG TATTATCCCG
1201 TGTTGACGCC GGGCAAGAGC AACTCGGTCG CCGCATACAC TATTCTCAGA ATGACTTGGT
1261 TGAGTACTCA CCAGTCACAG AAAAGCATCT TACGGATGGC ATGACAGTAA GAGAATTATG
1321 CAGTGCTGCC ATAACCATGA GTGATAACAC TGCGGCCAAC TTACTTCTGA CAACGATCGG
1381 AGGACCGAAG GAGCTAACCG CTTTTTTGCA CAACATGGGG GATCATGTAA CTCGCCTTGA
1441 TCGTTGGGAA CCGGAGCTGA ATGAAGCCAT ACCAAACGAC GAGCGTGACA CCACGATGCC
1501 TACAGCAATG GCAACAACGT TGCGCAAACT ATTAACTGGC GAACTACTTA CTCTAGCTTC
1561 CCGGCAACAA TTAATAGACT GGATGGAGGC GGATAAAGTT GCAGGACCAC TTCTGCGCTC
1621 GGCCCTTCCG GCTGGCTGGT TTATTGCTGA TAAATCTGGA GCCGGTGAGC GTGGGTCTCG
1681 CGGTATCATT GCAGCACTGG GGCCAGATGG TAAGCCCTCC CGTATCGTAG TTATCTACAC
1741 GACGGGGAGT CAGGCAACTA TGGATGAACG AAATAGACAG ATCGCTGAGA TAGGTGCCTC
1801 ACTGATTAAG CATTGGTAAC TGTCAGACCA AGTTTACTCA TATATACTTT AGATTGATTT
1861 AAAACTTCAT TTTTAATTTA AAAGGATCTA GGTGAAGATC CTTTTTGATA ATCTCATGAC
1921 CAAAATCCCT TAACGTGAGT TTTCGTTCCA CTGAGCGTCA GACCCCGTAG AAAAGATCAA
1981 AGGATCTTCT TGAGATCCTT TTTTTCTGCG CGTAATCTGC TGCTTGCAAA CAAAAAAACC
2041 ACCGCTACCA GCGGTGGTTT GTTTGCCGGA TCAAGAGCTA CCAACTCTTT TTCCGAAGGT
2101 AACTGGCTTC AGCAGAGCGC AGATACCAAA TACTGTCCTT CTAGTGTAGC CGTAGTTAGG
2161 CCACCACTTC AAGAACTCTG TAGCACCGCC TACATACCTC GCTCTGCTAA TCCTGTTACC
2221 AGTGGCTGCT GCCAGTGGCG ATAAGTCGTG TCTTACCGGG TTGGACTCAA GACGATAGTT
2281 ACCGGATAAG GCGCAGCGGT CGGGCTGAAC GGGGGGTTCG TGCACACAGC CCAGCTTGGA
2341 GCGAACGACC TACACCGAAC TGAGATACCT ACAGCGTGAG CTATGAGAAA GCGCCACGCT
2401 TCCCGAAGGG AGAAAGGCGG ACAGGTATCC GGTAAGCGGC AGGGTCGGAA CAGGAGAGCG
2461 CACGAGGGAG CTTCCAGGGG GAAACGCCTG GTATCTTTAT AGTCCTGTCG GGTTTCGCCA
2521 CCTCTGACTT GAGCGTCGAT TTTTGTGATG CTCGTCAGGG GGGCGGAGCC TATGGAAAAA
2581 CGCCAGCAAC GCGGCCTTTT TACGGTTCCT GGCCTTTTGC TGGCCTTTTG CTCACATGTT
2641 CTTTCCTGCG TTATCCCCTG ATTCTGTGGA TAACCGTATT ACCGCCTTTG AGTGAGCTGA
2701 TACCGCTCGC CGCAGCCGAA CGACCGAGCG CAGCGAGTCA GTGAGCGAGG AAGCGGAAGA
2761 GCGCCTGATG CGGTATTTTC TCCTTACGCA TCTGTGCGGT ATTTCACACC GCATAATTTT
2821 GTTAAAATTC GCGTTAAATT TTTGTTAAAT CAGCTCATTT TTTAACCAAT AGGCCGAAAT
2881 CGGCAAAATC CCTTATAAAT CAAAAGAATA GACCGAGATA GGGTTGAGTG TTGTTCCAGT
2941 TTGGAACAAG AGTCCACTAT TAAAGAACGT GGACTCCAAC GTCAAAGGGC GAAAAACCGT
3001 CTATCAGGGC GATGGCCCAC TACGTGAACC ATCACCCTAA TCAAGTTTTT TGGGGTCGAG
3061 GTGCCGTAAA GCACTAAATC GGAACCCTAA AGGGAGCCCC CGATTTAGAG CTTGACGGGG
3121 AAAGCCGGCG AACGTGGCGA GAAAGGAAGG GAAGAAAGCG AAAGGAGCGG GCGCTAGGGC
3181 GCTGGCAAGT GTAGCGGTCA CGCTGCGCGT AACCACCACA CCCGCCGCGC TTAATGCGCC
3241 GCTACAGGGC GCGTCCCATT CGCCATTCAG GCTGCTATGG TGCACTCTCA GTACAATCTG
3301 CTCTGATGCC GCATAGTTAA GCCAGTATAC ACTCCGCTAT CGCTACGTGA CTGGGTCATG
3361 GCTGCGCCCC GACACCCGCC AACACCCGCT GACGCGCCCT GACGGGCTTG TCTGCTCCCG
3421 GCATCCGCTT ACAGACAAGC TGTGACCGTC TCCGGGAGCT GCATGTGTCA GAGGTTTTCA
3481 CCGTCATCAC CGAAACGCGC GAGGCAGCAG ATCAATTCGC GCGCGAAGGC GAAGCGGCAT
3541 GCATTTACGT TGACACCATC GAATGGTGCA AAACCTTTCG CGGTATGGCA TGATAGCGCC
3601 CGGAAGAGAG TCAATTCAGG GTGGTGAATG TGAAACCAGT AACGTTATAC GATGTCGCAG
3661 AGTATGCCGG TGTCTCTTAT CAGACCGTTT CCCGCGTGGT GAACCAGGCC AGCCACGTTT
3721 CTGCGAAAAC GCGGGAAAAA GTGGAAGCGG CGATGGCGGA GCTGAATTAC ATTCCCAACC
3781 GCGTGGCACA ACAACTGGCG GGCAAACAGT CGTTGCTGAT TGGCGTTGCC ACCTCCAGTC
3841 TGGCCCTGCA CGCGCCGTCG CAAATTGTCG CGGCGATTAA ATCTCGCGCC GATCAACTGG
3901 GTGCCAGCGT GGTGGTGTCG ATGGTAGAAC GAAGCGGCGT CGAAGCCTGT AAAGCGGCGG
3961 TGCACAATCT TCTCGCGCAA CGCGTCAGTG GGCTGATCAT TAACTATCCG CTGGATGACC
4021 AGGATGCCAT TGCTGTGGAA GCTGCCTGCA CTAATGTTCC GGCGTTATTT CTTGATGTCT
4081 CTGACCAGAC ACCCATCAAC AGTATTATTT TCTCCCATGA AGACGGTACG CGACTGGGCG
4141 TGGAGCATCT GGTCGCATTG GGTCACCAGC AAATCGCGCT GTTAGCGGGC CCATTAAGTT
4201 CTGTCTCGGC GCGTCTGCGT CTGGCTGGCT GGCATAAATA TCTCACTCGC AATCAAATTC
4261 AGCCGATAGC GGAACGGGAA GGCGACTGGA GTGCCATGTC CGGTTTTCAA CAAACCATGC
4321 AAATGCTGAA TGAGGGCATC GTTCCCACTG CGATGCTGGT TGCCAACGAT CAGATGGCGC
4381 TGGGCGCAAT GCGCGCCATT ACCGAGTCCG GGCTGCGCGT TGGTGCGGAT ATCTCGGTAG
4441 TGGGATACGA CGATACCGAA GACAGCTCAT GTTATATCCC GCCGTTAACC ACCATCAAAC
4501 AGGATTTTCG CCTGCTGGGG CAAACCAGCG TGGACCGCTT GCTGCAACTC TCTCAGGGCC
4561 AGGCGGTGAA GGGCAATCAG CTGTTGCCCG TCTCACTGGT GAAAAGAAAA ACCACCCTGG
4621 CACCCAATAC GCAAACCGCC TCTCCCCGCG CGTTGGCCGA TTCATTAATG CAGCTGGCAC
4681 GACAGGTTTC CCGACTGGAA AGCGGGCAGT GAGCGCAACG CAATTAATGT GAGTTAGCGC
4741 GAATTGATCT G
//
Caution:
1. This product is FOR RESEARCH USE ONLY!
2. The item is lyophilized form, Please take the powder plasmid by centrifugation at 5000rpm/min for 1min. Add 20μl ddH2O in to the tube of plasmid.Take 2ul plasmid into 100 μ L corresponding competent cell, centrifugal then full coating on plate.
